Build an LTI tool with LAMB

Build an LTI tool with LAMB #

Deploy a small educational application, launch it from an LMS, and use a LAMB assistant as its AI engine. This guide takes you through a working chat activity, instructor setup, student participation, and grade return. Then you will add a saved student reflection to make the application your own.

Who this is for: developers and teaching-innovation teams comfortable with a terminal and basic Python. An instructor can configure activities once the service is deployed.

What you need: a LAMB deployment with personal creator API keys enabled, at least one published assistant available to that creator, Python 3.11 or newer, Git, and a browser. The container deployment also needs Docker Compose. An actual LMS deployment needs an HTTPS hostname and permission to configure an LTI 1.1 External Tool.

Version checked: template c8c6f2f, 30 September 2026. The local flow was verified using the LAMB LTI Test Tool, a creator personal key, a streamed answer, and grade passback. The real-Moodle steps below are deployment instructions; this walkthrough does not claim a live Moodle acceptance test. Older LAMB installations may need an upgrade before the API-key controls exist.

Screenshots use seeded demo users; activity labels and connection addresses have been standardized for publication. Select an image to open it at full size.

Template source · Test LMS source · LAMB user manual

In this guide #

  1. Understand the connections
  2. Prepare LAMB and create a key
  3. Run the tool locally
  4. Configure the tool
  5. Launch through the test LMS
  6. Configure, chat, and return a grade
  7. Run repeatable tests
  8. Deploy behind HTTPS and connect Moodle
  9. Operate and troubleshoot
  10. Extend the application
  11. Contribute your changes

1. Understand the connections #

Diagram showing an LMS sending a signed launch to the tool, the tool calling LAMB, and approved grades returning to the LMS.

The template is a separate application. LAMB manages the assistant, its prompt, knowledge sources, and model connection. Your application manages the learning interaction and its own activity data. The LMS provides the signed user/role context and receives grades.

ConnectionCredentialWhere you configure it
Administrator → toolTool admin username and passwordTool environment
Tool → LAMBCreator personal API keyTool /admin page
LMS → tool, and tool → LMS grade returnLTI consumer key and shared secretIdentical values in tool /admin and LMS tool registration
Student browser → toolSession created after a verified LTI launchAutomatic; students do not need the creator key

Do not interchange the LAMB key and LTI shared secret. They protect different connections.

The current template implements LTI 1.1, including Basic Outcomes grade passback. It is not an LTI 1.3/OIDC implementation. Check that your institution allows the version you intend to use.

Local addresses used here #

ServiceExample addressPurpose
Your existing LAMB instancehttp://localhost:9099Creator UI and OpenAI-compatible facade
New toolhttp://localhost:18890Admin, launch, setup, chat, dashboard
New test LMShttp://localhost:18802Demo courses, signed launches, grade receiver

Replace the LAMB address with your actual deployment. Keep localhost versus 127.0.0.1, the port, scheme, and launch path consistent in the tool and LMS configuration: these affect the LTI signature.

2. Prepare LAMB and create a key #

2.1 Enable personal API keys for the organization #

An organization administrator opens Org Admin → Settings → General. Below Signup Settings, find Personal API keys for creators, check Allow creators to create personal API keys, and click Save.

Refresh LAMB. The API keys navigation item appears only when the organization permits it. If you are a creator without administration rights, ask your organization administrator to enable it. If the section itself is absent, check whether your LAMB deployment includes the personal API-key feature.

2.2 Prepare a published assistant #

Create and test an assistant in Learning Assistants, then publish it. A key can access the published assistants you own or that are explicitly shared with you within your organization. An unpublished draft will not appear in the tool’s picker.

For a first test, use a text assistant with a working model connection. Test its response in LAMB before diagnosing your new application.

2.3 Create a personal key #

Open API keys, enter a useful label such as course-tool-staging, optionally set an expiry, and click Create key. Copy the key immediately: LAMB displays the full value only once. Store it in your password manager until you paste it into the tool’s admin page.

Use a separate key for each deployment so you can revoke or rotate one independently. Disabling organization API access stops its existing keys; an expired or revoked key also stops the application from calling LAMB.

2.4 Check the API before continuing #

The tool calls these endpoints:

1
2
3
GET  /v1/models
POST /v1/chat/completions
Authorization: Bearer <creator-personal-key>

After installing the Python dependencies in the next step, this small probe asks for the key without echoing it or putting it into shell history:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
python - <<'PY'
import getpass
import httpx
base = input('LAMB base URL: ').strip().rstrip('/')
key = getpass.getpass('Creator API key: ')
r = httpx.get(base + '/v1/models',
              headers={'Authorization': 'Bearer ' + key}, timeout=30)
r.raise_for_status()
for model in r.json()['data']:
    print(model['id'])
PY

Expected: at least one identifier such as lamb_assistant.7. An empty list means the key authenticated but has no visible published assistant. A 401/403 response points to credentials, expiry, account status, or organization access. Use the returned identifier, not the assistant’s display name, in API calls.

3. Run the tool locally #

This native-Python path puts the tool and test LMS on the same machine, making callback URLs straightforward. Use a disposable learning activity and synthetic users for testing.

3.1 Download and install #

1
2
3
4
5
6
7
git clone https://github.com/Lamb-Project/lamb-tool-template.git
cd lamb-tool-template
python3 -m venv .venv
source .venv/bin/activate
python -m pip install -r requirements.txt
cp .env.example .env
chmod 600 .env

Check python3 --version first; use python3.12 or your installed compatible version if the system default is older than 3.11. On Windows, use the corresponding virtual-environment activation command.

For reproducible deployment, record git rev-parse HEAD. This guide was checked against the revision linked above; review subsequent changes when updating.

3.2 Set boot configuration #

Open .env in an editor:

ADMIN_USERNAME=tool-admin
ADMIN_PASSWORD=REPLACE_WITH_A_GENERATED_PASSWORD
PUBLIC_BASE_URL=http://localhost:18890
TOOL_DB_PATH=data/tool.db
SESSION_HOURS=8
ADMIN_SESSION_HOURS=12

Generate a password with python -c 'import secrets; print(secrets.token_urlsafe(32))' and replace the placeholder. Do not use the example text as a password. .env is local configuration and must stay outside Git.

PUBLIC_BASE_URL is the address the browser/LMS uses to reach the tool, not the LAMB address. The launch endpoint will be http://localhost:18890/lti/launch.

3.3 Start the server #

From the template repository root, with the virtual environment activated:

1
uvicorn app.main:app --env-file .env --host 127.0.0.1 --port 18890

Keep this terminal running. --env-file explicitly loads .env; merely creating the file does not make Python read it. The working directory matters because template and static-file paths are relative.

In another terminal:

1
curl --fail http://localhost:18890/healthz

Expected: {"status":"ok"}. This confirms the application is running, not that the LAMB credentials or LMS registration are correct.

Open http://localhost:18890/admin. A direct visit to /chat is not a student login; student sessions start with a signed launch from the LMS.

4. Configure the tool #

Log in to /admin with the credentials from .env. Fill in:

FieldValue
LAMB API base URLYour LAMB root, for example http://localhost:9099
LAMB API keyYour creator personal key
Consumer keyA label such as learning-tool-local
Shared secretA new generated secret, separate from the API key and admin password

Do not append /v1 to the LAMB API base URL. app/lamb_client.py appends /v1/models and /v1/chat/completions itself.

Click Save. Copy the displayed Tool URL and retain the LTI consumer key and shared secret for the LMS registration.

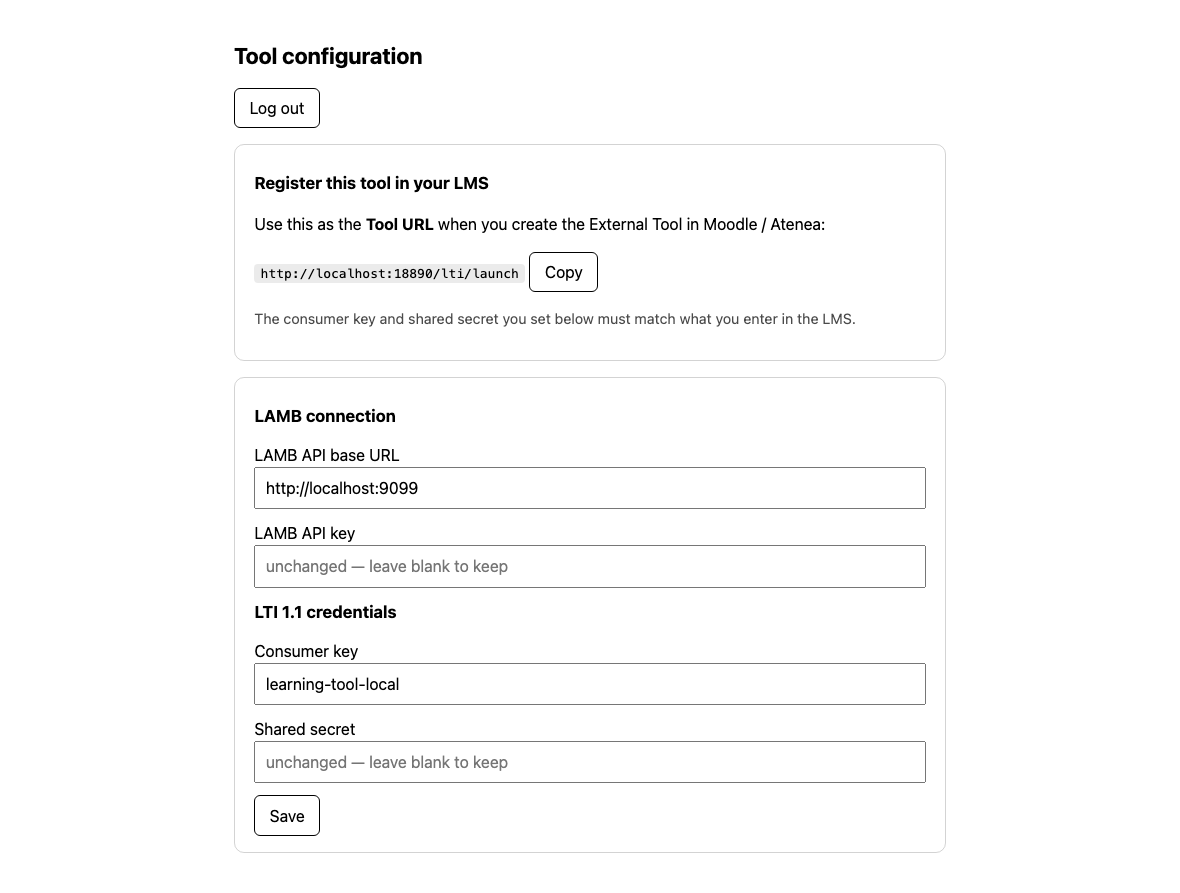

The template admin console with the launch URL, LAMB connection fields and LTI credentials. Secret fields are empty.

Figure 1. The actual admin screen. Example labels and the LAMB address have been substituted for publication; secrets are not displayed.

Runtime settings are stored in data/tool.db. Secret inputs are write-only: a blank secret field on later saves preserves its current value. You can optionally pre-seed these settings with LAMB_API_BASE, LAMB_API_KEY, LTI_CONSUMER_KEY, and LTI_SECRET environment variables, but saved database values take precedence. Editing a seed value in .env will not rotate a credential already stored in the database. Use /admin instead.

5. Launch through the test LMS #

5.1 Start the LAMB LTI Test Tool #

In a separate directory and terminal:

1
2
3
4
5
6
git clone https://github.com/Lamb-Project/lamb-lti-test-tool.git
cd lamb-lti-test-tool
python3 -m venv .venv
source .venv/bin/activate
python -m pip install -r requirements.txt
uvicorn app:app --host 127.0.0.1 --port 18802

Open http://localhost:18802. The tester seeds demo courses, teachers and students on first startup. It is a development mock LMS, so keep it on loopback and use synthetic data.

5.2 Add a tool server #

Open Tool Servers and add:

FieldValue
NameLAMB tool template
Domainlocalhost
Port18890
DescriptionOptional description of this test deployment

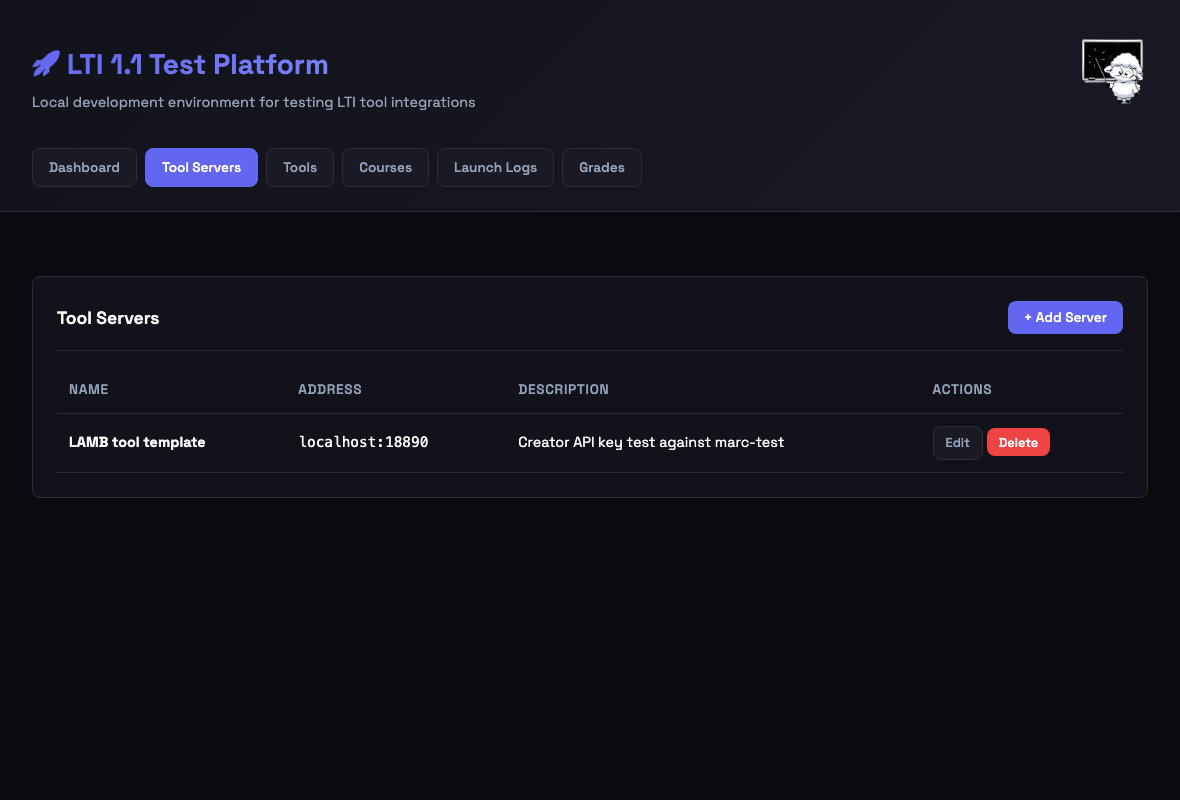

The test LMS Tool Servers screen showing a local tool server on port 18890.

Figure 2. The server entry describes where the tool is reachable.

5.3 Register the tool #

Open Tools and add a tool using that server:

  • Name: LAMB learning activity.
  • Launch path: /lti/launch.
  • Consumer key: the same value saved in the tool admin console.
  • Consumer secret: the same shared secret saved there.

The domain and port belong to the tool, not to LAMB or the test LMS. Save the registration.

5.4 Add it to a demo course #

Open Courses → Introduction to Python and add your registered tool. This creates a course placement with its own resource_link_id. The demo course name does not constrain the topic of your assistant.

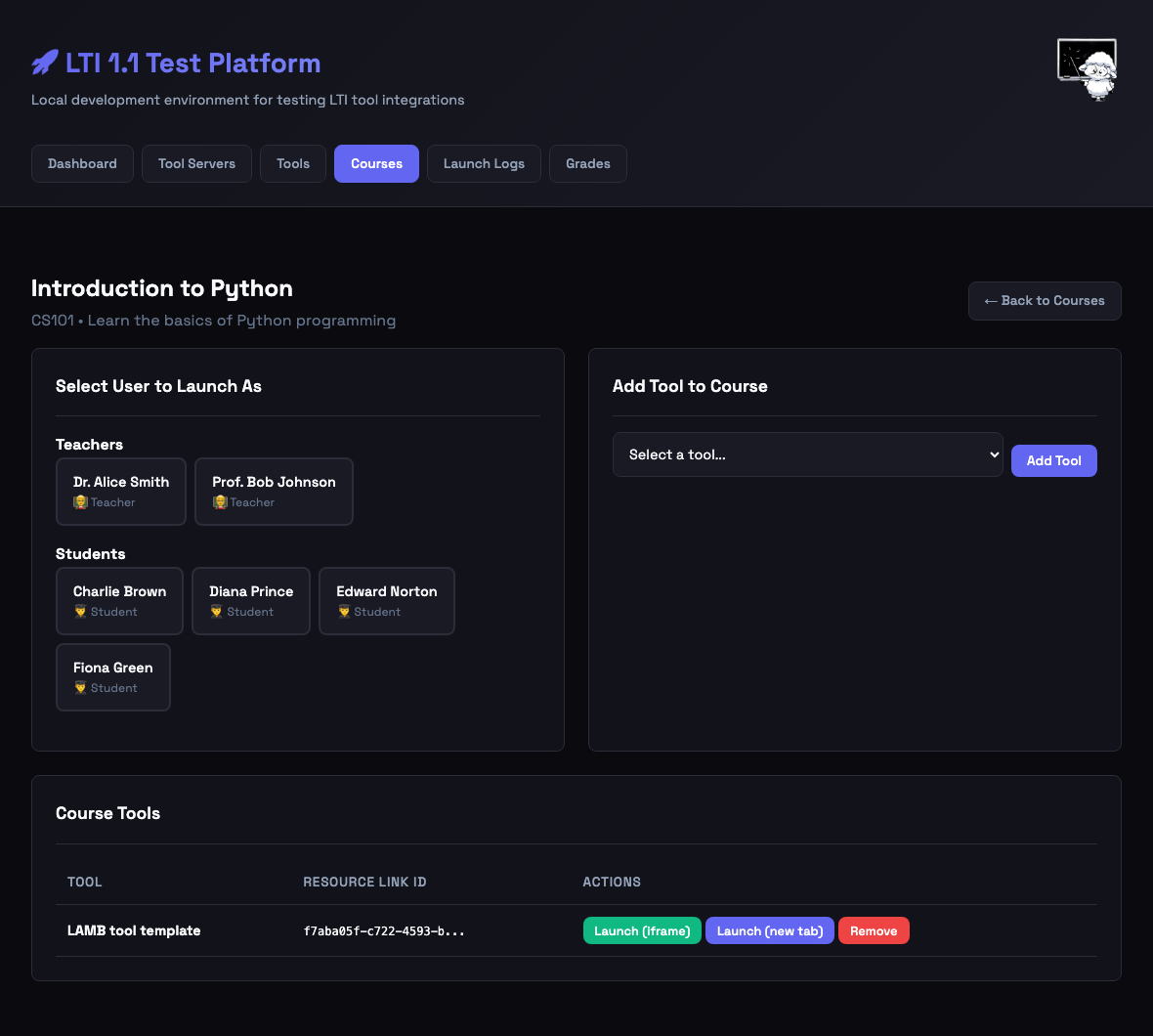

Demo course showing teacher and student selectors and launch buttons for the registered tool.

Figure 3. Select a person first, then use the course tool’s launch button. Use a teacher for setup and a student for chat. The people shown are seeded demo users.

The tester creates the signed form and POSTs it to the launch URL. Do not copy the resulting ?session=... URL into teaching material or bookmark it as a permanent entry point. Relaunch from the course instead.

6. Configure, chat, and return a grade #

6.1 Instructor first launch #

Under Select User to Launch As, select a teacher, for example Dr. Alice Smith. Then click Launch (new tab) in the course tool row. On a new placement, the tool opens Set up this activity.

  1. Enter an activity title.
  2. Select an assistant from the live LAMB list.
  3. Check Enable grade passback if you want this test to return a grade.
  4. Set Turns for completion, for example 3.
  5. Click Save.

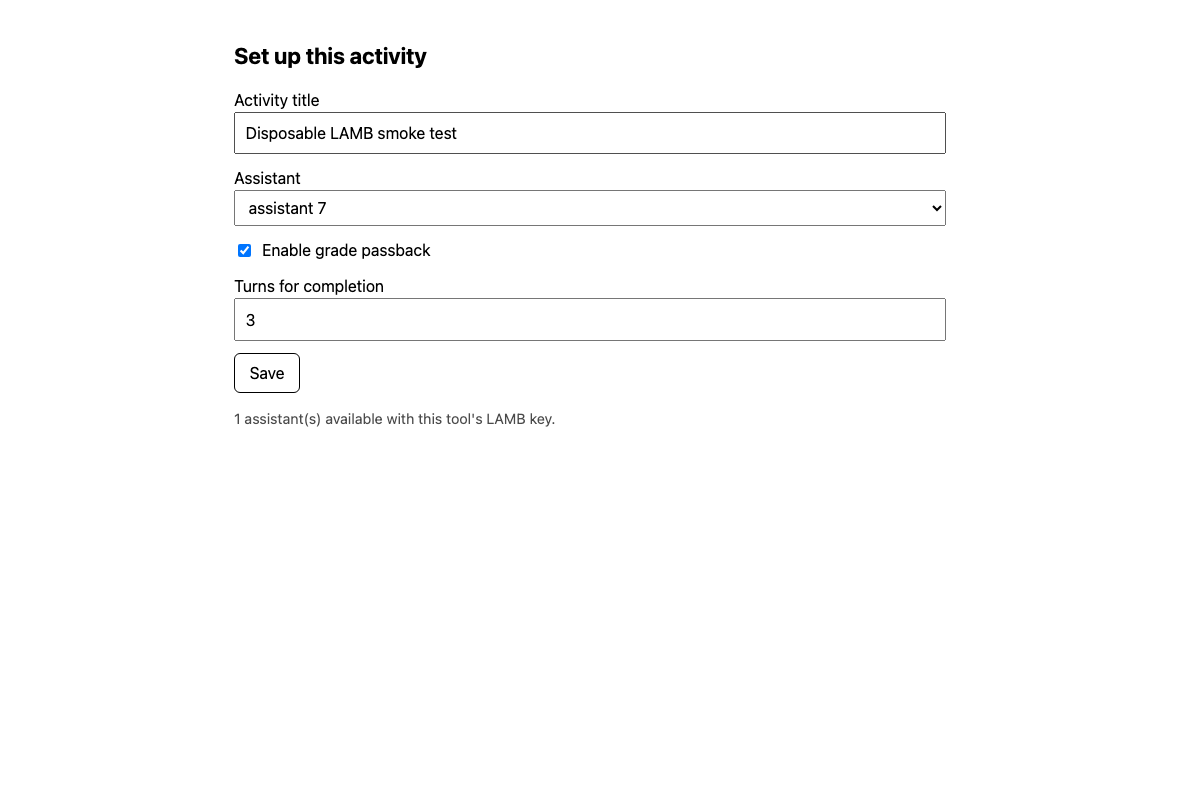

Activity setup with title, assistant selection, grade passback and turns-for-completion fields.

Figure 4. The picker is populated through the configured creator key. The current facade may show a label such as “assistant 7” rather than the assistant’s name.

The instructor reaches the dashboard. Later instructor launches return there; edit setup reopens the configuration.

“Turns for completion” produces a participation proposal: user turns divided by the configured threshold, capped at 100%. Zero disables that proposal. It does not judge answer quality and does not automatically submit grades.

6.2 Student launch and chat #

Use a separate browser profile or private window for the student, especially in local tests. In the course, select a demo student such as Charlie Brown, then click Launch (new tab). The tool opens the activity’s chat.

Send a harmless test question, for example: “In one short sentence, what can you help a learner do?” Wait for the complete response. The browser calls your tool; the tool calls LAMB with its server-side key. The messages are stored in the tool database.

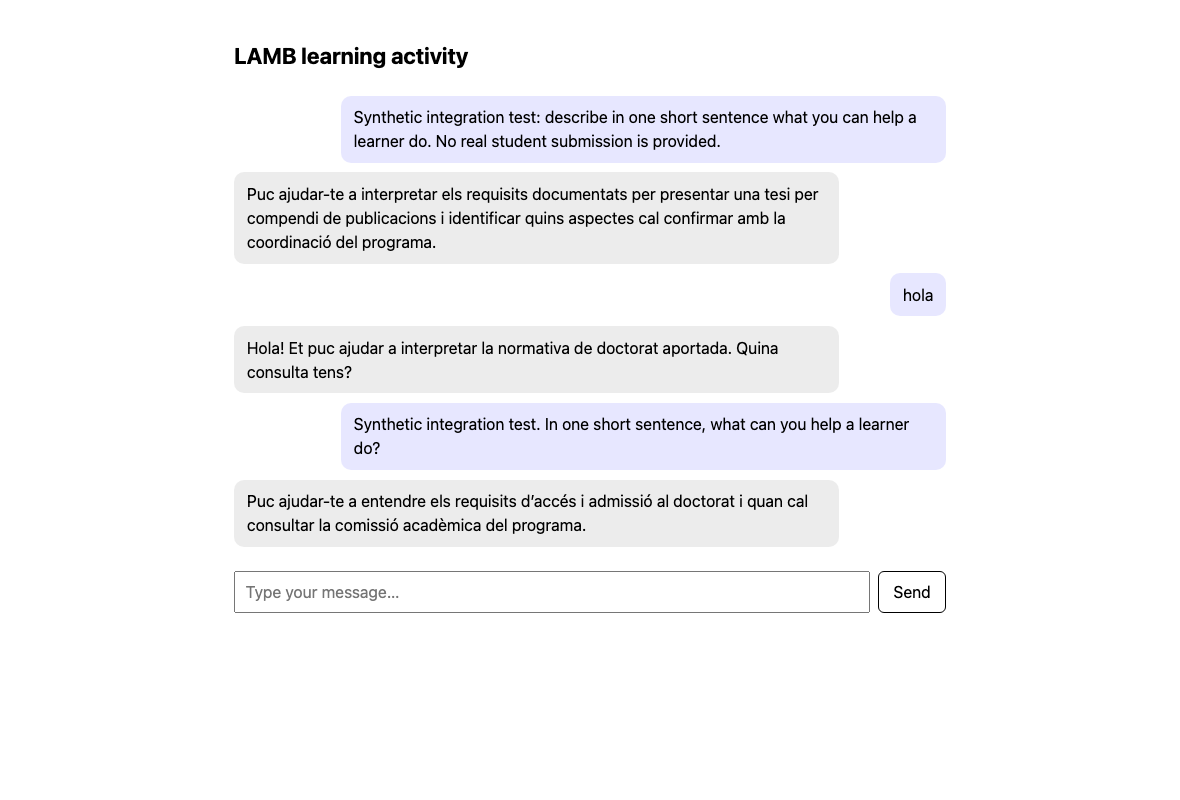

Student chat showing a synthetic prompt and a streamed answer from a doctoral-regulations assistant.

Figure 5. A real response through the personal-key API. This example assistant answers in Catalan; your assistant’s language and behavior come from its LAMB configuration.

Relaunch the same student and confirm that the conversation is retained. A student who arrives before instructor setup sees the waiting page; configure the activity and relaunch.

6.3 Review and return a test grade #

Relaunch as instructor. The dashboard lists learners who launched the activity, their recorded turns, and the participation proposal. This is not a full LMS roster synchronization.

  1. Find the test student’s row.
  2. Enter 8 in Grade (0–10) and enter feedback.
  3. Click the row’s Save button.
  4. Click Send saved grades to LMS.
  5. Confirm Sent 1. Failed 0. for this single-student test.

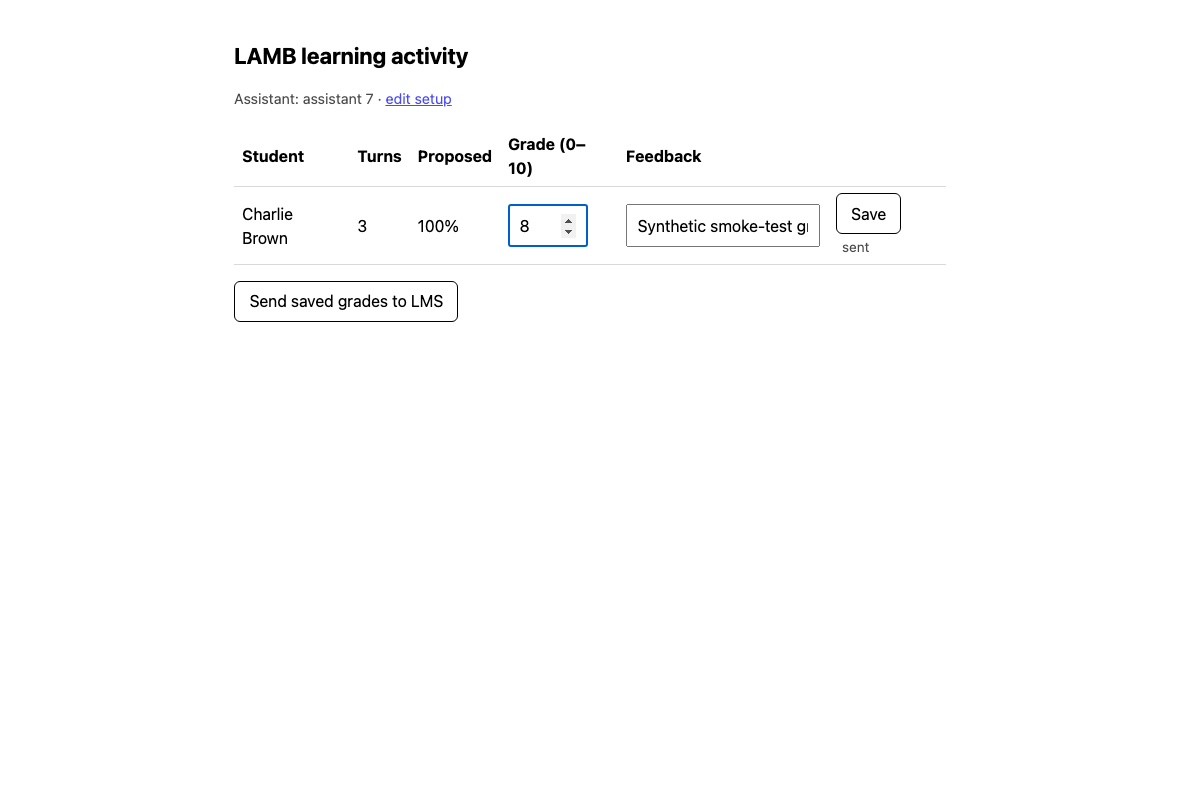

Instructor dashboard with the demo learner, participation proposal, an entered grade of 8 and feedback.

Figure 6. The grade-entry step. Saving a grade and sending it to the LMS are separate actions.

Open the tester’s Grades page. The tester should display 80%, representing the normalized result 0.8, equivalent to 8/10.

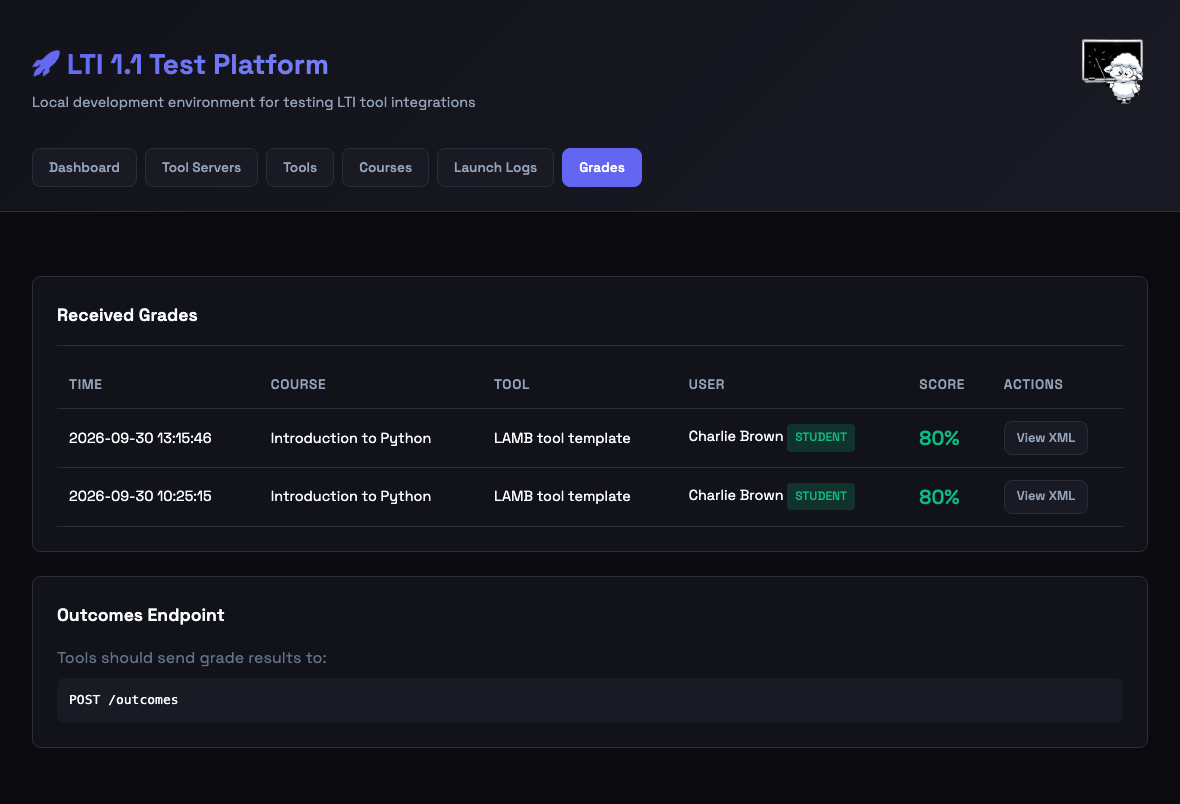

The mock LMS Grades screen showing the received result for the demo learner.

Figure 7. Verify the receiving system, not just the tool’s success message.

Known issue in the checked snapshot: the dashboard reloads a stored normalized grade, such as 0.8, directly into an input labeled 0–10. Before saving an existing grade again, enter the intended value on the 0–10 scale. Fix the display conversion before classroom grading: the template should display p.score * 10, while the database and outcome protocol retain 0–1 values. Include save → reload → save in your regression tests.

7. Run repeatable tests #

7.1 Manual acceptance checklist #

Run these checks on a disposable course before each deployment:

CheckExpected result
Health endpoint200 and status: ok
LAMB model discoveryOnly the creator’s available published assistants
First instructor launchSetup screen
Student before setupWaiting page
Setup saved, then instructor relaunchDashboard with selected activity
Student promptComplete nonempty streamed answer, no error bubble
Same student relaunchIts saved conversation is visible
Different studentSeparate conversation
Learner opens instructor dashboardAccess denied
Missing or invalid launch signatureLaunch rejected
Save 8/10 and sendReceiving LMS records 0.8
Grade reload and resaveNo factor-of-ten change; address the snapshot issue above
Service restartSettings, activity and history survive

A model response proves API connectivity, not educational quality. Evaluate the assistant’s behavior and knowledge separately in LAMB.

7.2 Bundled launch-validation test #

The template includes tests/test_lti_launch.py, which checks valid launches, forged signatures, role tampering, replayed nonces, stale timestamps, missing sessions, and the pre-setup learner route.

Run it against a test tool instance, not a live course. In the template directory, activate its virtual environment and run:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
python - <<'PY'
import getpass, os, subprocess, sys
env = os.environ.copy()
env['TOOL_BASE'] = 'http://localhost:18890'
env['PUBLIC_BASE_URL'] = env['TOOL_BASE']
env['LTI_CONSUMER_KEY'] = input('LTI consumer key: ').strip()
env['LTI_SECRET'] = getpass.getpass('LTI shared secret: ')
subprocess.run([sys.executable, 'tests/test_lti_launch.py'],
               env=env, check=True)
PY

The shared secret here is the LTI secret, not your creator key. These values must match the settings saved in /admin. The script signs launches with synthetic identifiers; it does not reset the application database. The setup-page check also attempts to list LAMB models, so a working LAMB connection makes the result more useful.

7.3 Browser tests for the whole flow #

The repository includes tests/e2e_full.py. In the checked revision it is a reference harness, not a portable one-command test: it hard-codes ports, checkout/database paths, credentials, and demo-user IDs; it also replaces an existing test placement. Adapt it only for a disposable environment.

For an existing placement, download this guide’s portable browser smoke test. It takes instructor/student launch URLs and a model identifier as inputs, needs no LAMB key in browser code, and does not remove a placement.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
mkdir tool-browser-test
cd tool-browser-test
npm init -y
npm install --save-dev playwright
npx playwright install chromium
# Save smoke-test.mjs from the link above into this directory.

export TOOL_ORIGIN=http://localhost:18890
export TEACHER_LAUNCH='http://localhost:18802/launch/1?user_id=1'
export STUDENT_LAUNCH='http://localhost:18802/launch/1?user_id=3'
export ASSISTANT_MODEL=lamb_assistant.7
node smoke-test.mjs

Replace the placement/user IDs with those from your tester links, and the model with one returned by your key. The script saves screenshots in artifacts/, sends a synthetic prompt, assigns a synthetic 8/10 grade, and sends that grade to the test LMS. Use only a disposable placement. It checks the tool’s passback result; finish by checking Grades in the receiving LMS for 0.8. Keep screenshots, logs and session URLs out of public repositories unless reviewed and sanitized.

8. Deploy behind HTTPS and connect Moodle #

8.1 Prepare the production host #

Choose a hostname such as learning-tool.example.edu, point DNS at your server, and arrange HTTPS through your institution’s reverse proxy. The server must reach both LAMB and the LMS outcome endpoint. The learner’s browser must reach the tool.

Use a separate production creator key, LTI secret, admin password, and database. Verify institutional support for LTI 1.1 before rollout. The template is a starting point; address the grade-display issue and review authentication, request limits, and deployment hardening before use with real learners.

8.2 Container deployment #

Clone the repository on the server and create .env as in the local setup, with:

ADMIN_USERNAME=tool-admin
ADMIN_PASSWORD=REPLACE_WITH_A_NEW_GENERATED_PASSWORD
PUBLIC_BASE_URL=https://learning-tool.example.edu

The repository’s default Compose file exposes port 8080. To bind the app only to the host reverse proxy, create a separate compose.production.yaml in the repository root:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
services:
  tool:
    build: .
    env_file: .env
    environment:
      TOOL_DB_PATH: /srv/tool/data/tool.db
    ports:
      - "127.0.0.1:18890:8080"
    volumes:
      - ./data:/srv/tool/data
    restart: unless-stopped

Run this file explicitly:

1
2
3
4
5
mkdir -p data
chmod 700 data
chmod 600 .env
docker compose -f compose.production.yaml up -d --build
curl --fail http://127.0.0.1:18890/healthz

The persistent data/ mount holds settings, sessions, conversations and grades. Replacing the container must preserve this directory.

Container networking: localhost inside this container means the container itself. In /admin, use a LAMB URL reachable from the container, normally its HTTPS hostname. For Docker Desktop development, host.docker.internal can address a host service; on Linux an explicit host-gateway mapping may be needed. This does not change PUBLIC_BASE_URL, which remains the browser-facing tool URL. Local LMS callbacks have the same networking constraint. Use the native local path above for the simplest complete mock-LMS test.

8.3 Reverse proxy #

For a host-installed Caddy reverse proxy, a minimal site block is:

1
2
3
4
5
6
learning-tool.example.edu {
    reverse_proxy 127.0.0.1:18890 {
        flush_interval -1
    }
    header Referrer-Policy "no-referrer"
}

Adapt this to your institution’s TLS setup. See the Caddy reverse-proxy reference for transport and streaming options. This example assumes Caddy runs on the same host, not in a separate container. Verify that /healthz and /admin work through HTTPS and that responses stream without proxy buffering. Make sure framing policy permits your LMS if you use embedded launches; start with a new-window launch to isolate iframe/cookie issues.

Session tokens can occur in query strings for iframe compatibility. Avoid logging full query strings, leaking them through referrers, or including third-party analytics on authenticated tool pages. The checked admin-cookie implementation should also be reviewed for production Secure-cookie policy, together with CSRF protection and login rate limits. These are deployment/engineering tasks, not settings a learner should need to manage.

8.4 Set runtime configuration #

Open https://learning-tool.example.edu/admin and enter the production LAMB base URL, creator key, LTI consumer key, and shared secret. Save and copy the displayed launch URL:

1
https://learning-tool.example.edu/lti/launch

8.5 Add the Moodle External Tool #

Moodle labels and permissions vary by version and institution; consult the Moodle External tool settings for your version. Add an External tool activity in a course, or ask a site administrator to create a reusable tool under Site administration → Plugins → Activity modules → External tool → Manage tools.

SettingValue or action
Tool URLThe HTTPS /lti/launch URL from the tool admin page
LTI versionLTI 1.0/1.1, where offered
Consumer keyExact match to the tool’s saved consumer key
Shared secretExact match to the tool’s saved LTI secret
Launch containerNew window for initial testing; embedded after verification
Name/email sharingConfigure according to institutional policy; shared names help identify the dashboard roster
Accept grades from the toolEnable when using grade passback
Activity gradeConfigure a grade type and maximum grade appropriate to the course

The launch’s stable user identifier and result identifier associate the learner and grade. Names/emails make the roster readable; do not substitute them for identity in your code. A maximum grade of 10 makes the local 0.8 test appear as 8/10; a different maximum scales the normalized result.

Launch as instructor, configure the assistant, then test with a dedicated learner account. Confirm both a complete response and the result in the Moodle gradebook. Test embedded mode separately if that is how the course will run. A successful mock-LMS test does not establish that institutional HTTPS, iframe policies, grade settings, or role mapping are correct.

9. Operate and troubleshoot #

Keep data and credentials recoverable #

Back up .env and the SQLite database securely. The database contains the saved LAMB key and LTI secret as well as learner data. Restrict access to backups as you do to the live server.

For the container example, a simple maintenance-window backup is:

1
2
3
4
5
6
docker compose -f compose.production.yaml stop tool
mkdir -p backups
chmod 700 backups
umask 077
cp data/tool.db "backups/tool-$(date +%Y%m%d-%H%M%S).db"
docker compose -f compose.production.yaml start tool

Test restore against an isolated instance with the same code revision before relying on the backup. Keep credentials and backups outside version control. For updates, record the old revision, back up, review changes and any migration requirements, rebuild, and rerun launch/chat/grade checks. A code rollback alone cannot undo incompatible database changes.

To rotate a creator key, create its replacement in LAMB, save it in the tool admin console, test model discovery and a completion, then revoke the old key. For an LTI secret change, update both tool and LMS together and test a fresh launch.

Troubleshooting table #

SymptomCheck first
App refuses to startRequired admin credentials and PUBLIC_BASE_URL; explicit .env loading; Python version
/healthz works but launch is rejectedAll four runtime settings saved; matching LTI key/secret; exact public launch URL; clock skew
LAMB path contains /v1/v1/Remove /v1 from the configured base URL
Empty assistant pickerAssistant published; owned/shared access; organization API access; active creator key
Connection refused inside DockerUse a container-reachable LAMB address; do not assume container localhost is the host
Student sees waiting pageInstructor has not configured this course placement
Chat starts but no answer arrivesInspect tool and LAMB logs; test the assistant in LAMB; check provider and streaming timeouts
Session missing/expiredRelaunch from LMS; do not reuse old session URLs; check HTTPS and iframe behavior
Student absent from dashboardStudent must launch the activity first; this is not full roster import
Sent 0 or passback failureGrading enabled; saved unsent grade; learner launch supplied result/outcome fields; LMS callback reachable
Grade shown as 0.8 in a 0–10 input after reloadSnapshot display-conversion bug described in section 6; fix before real grading
Environment change seems ignoredRuntime settings in SQLite override environment seeds; update through /admin

docker compose -f compose.production.yaml logs --tail=100 tool is useful for startup failures. Share sanitized diagnostics, never keys, full launch payloads, or session-bearing URLs.

10. Extend the application #

10.1 Choose the right layer #

Change the assistant’s prompt, model, knowledge sources and rubric in LAMB when the educational change belongs to the assistant. Change the tool when you need a different interaction, saved activity state, submission workflow, or instructor view.

FileResponsibilityTypical extension
app/templates/chat.html, app/static/chat.jsLearner interface and streaming displayGuided steps, response controls, accessible status messages
app/routers/chat.pyAuthenticated chat and historyInput limits, structured activity flow, retrieval of tool-owned state
app/lamb_client.py/v1/models and streamed /v1/chat/completionsControlled request construction, timeouts and error reporting
app/templates/setup.html, app/routers/instructor.pyActivity settings, dashboard and gradingPer-activity options, richer review, assessment proposals
app/db.pySQLite schema and persistenceVersioned migrations and scoped feature data
app/sessions.pySession resolution and role checksReuse from every new protected endpoint
app/lti/validation.py, app/lti/outcomes.pyLaunch validation and signed grade returnPreserve these module boundaries and their tests

10.2 Worked example: save a student reflection #

Suppose students should write a short reflection after chatting. Add a private, saved reflection first. It is not automatically sent to an AI model or used as a grade. The example reuses the authenticated session and scopes records by user, course placement, and LMS consumer.

Create app/routers/reflection.py:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
from fastapi import APIRouter, Request
from pydantic import BaseModel, Field
from .. import db, sessions

router = APIRouter()


def init_reflections():
    with db.get_conn() as conn:
        conn.execute('''
            CREATE TABLE IF NOT EXISTS reflections (
                user_id INTEGER NOT NULL,
                resource_link_id TEXT NOT NULL,
                consumer_guid TEXT NOT NULL,
                body TEXT NOT NULL,
                updated_at TEXT NOT NULL,
                PRIMARY KEY (user_id, resource_link_id, consumer_guid)
            )
        ''')


class Reflection(BaseModel):
    body: str = Field(min_length=30, max_length=4000)


def identity(session):
    return (session['user_id'], session['resource_link_id'],
            session['consumer_guid'])


@router.get('/reflection')
def read_reflection(request: Request):
    session = sessions.resolve_session(request)
    with db.get_conn() as conn:
        row = conn.execute('''
            SELECT body FROM reflections
            WHERE user_id=? AND resource_link_id=? AND consumer_guid=?
        ''', identity(session)).fetchone()
    return {'body': row['body'] if row else ''}


@router.post('/reflection')
def save_reflection(request: Request, reflection: Reflection):
    session = sessions.resolve_session(request)
    with db.get_conn() as conn:
        conn.execute('''
            INSERT INTO reflections
                (user_id, resource_link_id, consumer_guid, body, updated_at)
            VALUES (?, ?, ?, ?, ?)
            ON CONFLICT(user_id, resource_link_id, consumer_guid)
            DO UPDATE SET body=excluded.body, updated_at=excluded.updated_at
        ''', (*identity(session), reflection.body, db.now_iso()))
    return {'ok': True}

In app/main.py, import reflection alongside the existing routers. Add reflection.init_reflections() inside _startup() after db.init_db(), and register app.include_router(reflection.router) alongside the other routers. For later schema changes, introduce explicit, versioned migrations; CREATE TABLE IF NOT EXISTS only covers the initial addition.

Add this form inside the content block in app/templates/chat.html:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
<section aria-labelledby="reflection-heading">
  <h2 id="reflection-heading">Your reflection</h2>
  <form id="reflection-form">
    <label for="reflection-body">What did you learn, and what remains unclear?</label>
    <textarea id="reflection-body" required minlength="30"
              maxlength="4000" rows="5"></textarea>
    <button type="submit">Save reflection</button>
    <p id="reflection-status" role="status" aria-live="polite"></p>
  </form>
</section>

Load a new /static/reflection.js after the template assigns window.SESSION_TOKEN. Put the following in app/static/reflection.js:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
(async function () {
  const form = document.getElementById('reflection-form');
  const input = document.getElementById('reflection-body');
  const status = document.getElementById('reflection-status');
  const headers = { 'X-Session-Token': window.SESSION_TOKEN };
  try {
    const response = await fetch('/reflection', { headers });
    if (!response.ok) throw new Error('load');
    input.value = (await response.json()).body;
  } catch {
    status.textContent = 'Could not load your reflection. Relaunch and try again.';
  }
  form.addEventListener('submit', async (event) => {
    event.preventDefault();
    const button = form.querySelector('button');
    button.disabled = true;
    try {
      const response = await fetch('/reflection', {
        method: 'POST',
        headers: { ...headers, 'Content-Type': 'application/json' },
        body: JSON.stringify({ body: input.value }),
      });
      if (!response.ok) throw new Error('save');
      status.textContent = 'Reflection saved.';
    } catch {
      status.textContent = 'Could not save. Check the length and your session, then retry.';
    } finally {
      button.disabled = false;
    }
  });
})();

Add a small rule to app/static/style.css so the new input uses the available width:

1
2
3
4
5
6
7
#reflection-body {
  display: block;
  width: 100%;
  font: inherit;
  padding: 0.6rem;
  margin-bottom: 0.75rem;
}

Restart the development server, or rebuild the container. Launch as a learner, enter at least 30 characters, save, and relaunch. The text should return. Check a second learner and a second course placement: neither should inherit the first learner’s text. This sample permits any authenticated participant to save their own reflection; add a learner-only rule if your activity requires one.

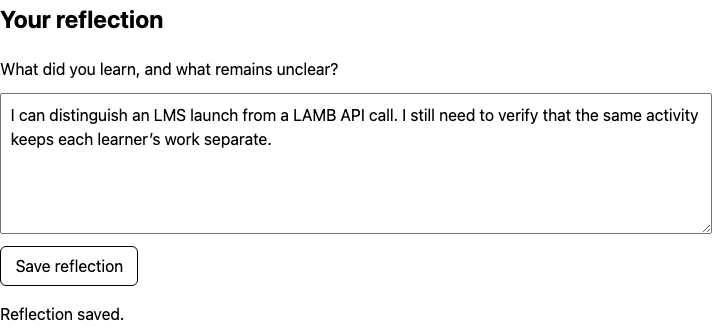

The extended chat page with a saved student reflection and a confirmation message.

Figure 8. The reflection example running in an isolated test instance. Save and reload were verified in a browser.

The client never submits a trusted user_id, role, course, or model identifier. Those come from the authenticated server-side session or saved activity. Use parameterized SQL and render user text as text, not raw HTML.

10.3 Extend assessment without removing instructor review #

The starter propose_completion_score() counts participation. To add an AI-assisted rubric proposal, keep the distinction between a proposal, a saved instructor decision, and a sent LMS result. Store the evidence and rubric version behind each proposal. Validate model output and handle timeouts explicitly. Have instructors review before invoking grade passback.

Keep scores in 0–1 in storage and in the outcome protocol; convert at the 0–10 UI boundary. Test 0, 0.8, and 1 through save, reload, edit, send and receiving-gradebook readback.

10.4 Extension test contract #

Every new feature should establish:

  • Unauthenticated requests fail; learner requests cannot use instructor operations.
  • Data stays scoped to the session’s user, resource link and consumer GUID.
  • Inputs have server-side limits and validation; invalid submissions do not corrupt stored work.
  • State survives restart and the migration preserves earlier activities.
  • Errors leave a useful recovery path; streaming failures do not silently count as completed learning work.
  • Existing signed-launch, chat and grade-return behavior still works.

Do not weaken signature or replay checks to make a new screen easier to reach. Keep all LAMB credentials on the server. If users can choose among models, validate their choice against what the configured key can access and persist the choice as an instructor setting.

11. Contribute your changes #

Develop in your own branch or fork. Include a description of the learning activity, setup instructions, screenshots with synthetic data, and tests for the new behavior. General improvements to the LTI boundary, sessions, persistence, and LAMB client can benefit other template users.

The extension notes describe a possible later integration into LAMB. That integration requires decisions about identity, storage and credentials; copying this standalone app into LAMB does not make it an integrated extension automatically.

Keep the template’s GPL-3.0 license and attribution, and consult the repository’s contribution discussion when preparing changes. Start with the template repository for issues and pull requests.
